| MOQ: | 1 |
| prezzo: | 500 |
| Imballaggio standard: | Imballaggio nudo |
| Periodo di consegna: | 15-30 giorni lavorativi |
| metodo di pagamento: | L/c, d/a, d/p, t/t |
| Capacità di approvvigionamento: | 50 pc/settimana |

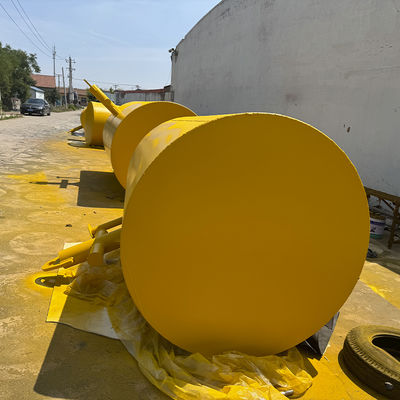

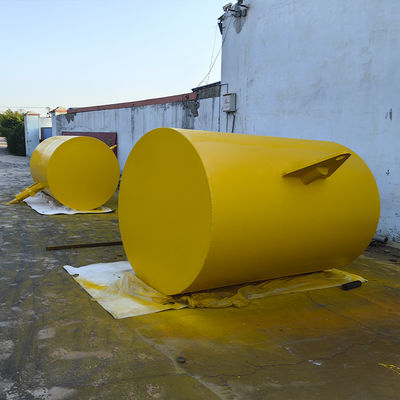

Steel Mooring Buoy Technical Parameter
| Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |

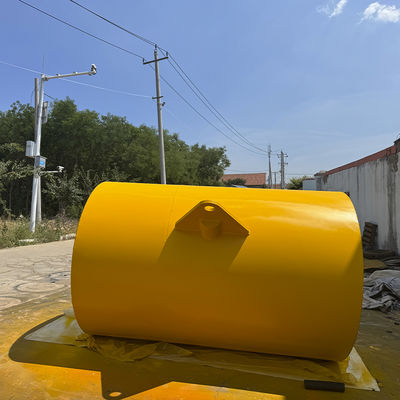

Anchor Pendant Buoy
Anchor pendant buoys come in an extensive range of sizes, offering options such as suitcase-style, modular, non-modular, custom-made, and standard configurations. All units are equipped with removable central steelwork, which is tailored to meet specific customer requirements—typically featuring either a handling crucifix/pad eye arrangement or a through hawse designed for use with anchor wire instead of chain.
Anchor Pendant Buoy Technical Parameters
|
Model
|
Reserve Buoyancy (kg) |
Diameter (mm) |
Float Length (mm) |
Overall Length (mm) |
Weight (kg) |
|
HE-APB1000
|
1000 | 1350 | 1100 | 1900 | 300 |
|
HE-APB2000
|
2000 | 1500 | 1500 | 2600 | 500 |
|
HE-APB3000
|
3000 | 1850 | 1500 | 2600 | 600 |
|
HE-APB4000
|
4000 | 2000 | 1900 | 2900 | 850 |
|
HE-APB6000
|
6000 | 2500 | 2200 | 3250 | 1000 |
|
HE-APB8000
|
8000 | 2500 | 2200 | 3250 | 1250 |
|
HE-APB10000
|
10000 | 3000 | 2200 | 3500 | 1550 |
|
HE-APB20000 |
20000 | 3500 | 3000 | 4200 | 2400 |
*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
